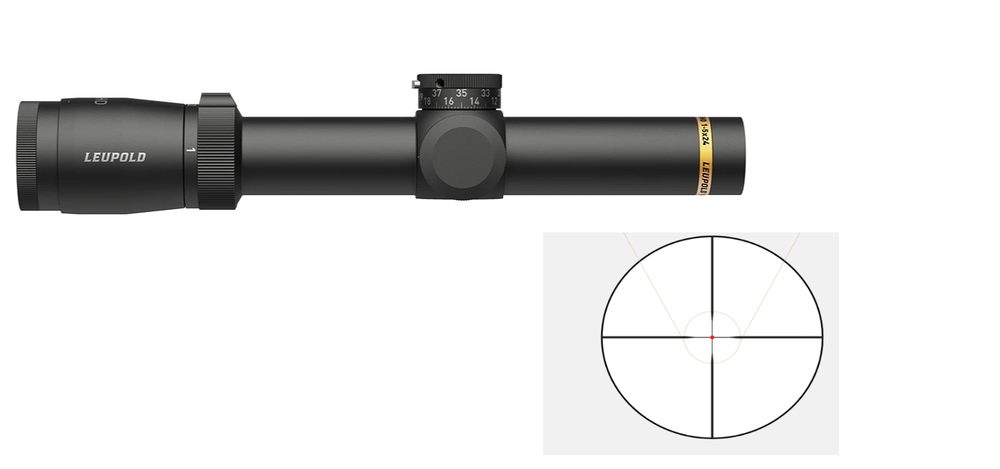

Leupold VX-5HD 1-5x24 (30mm) CDS-ZL2 Illum. FireDot Duplex 172367 Save 300$

$999.99
No reviews yet Write a Review
SKU:
LEU-172367
UPC:
030317012144
  • Free Ground Shipping

  • Personal Service

  • Quality Products

  • Competitive Prices

Save 300$ until December 31!

Specifications
More Information
Battery Type CR2032
BDC Dial Included No
Custom Dial System (CDS) Yes
Custom BDC Dial Compatible Yes
Daylight Bright Illumination Yes
Elevation Adjustment Type CDS-ZL2
Electronic Reticle Level No
Light Management System Professional-Grade Optical System
Locking Dial Yes
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator Yes
Reticle Illum. FireDot Duplex
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Precision Side Focus No
Switch Type Push Button
Windage Adjustment Type Pop-Up Rezero
Weight (oz) 14.7
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 20 MOA
Magnification Max 5
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 120.9
Linear FOV High Mag (ft@100yds) 22
Angular FOV Low Mag (Degrees) 22.8
Angular FOV High Mag (Degrees) 4.6
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Objective Length (in) 0
