| Adjustable Parallax | Side Focus |
|---|---|
| Battery Type | CR2032 |
| BDC Dial Included | No |
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS-SZL2 |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |

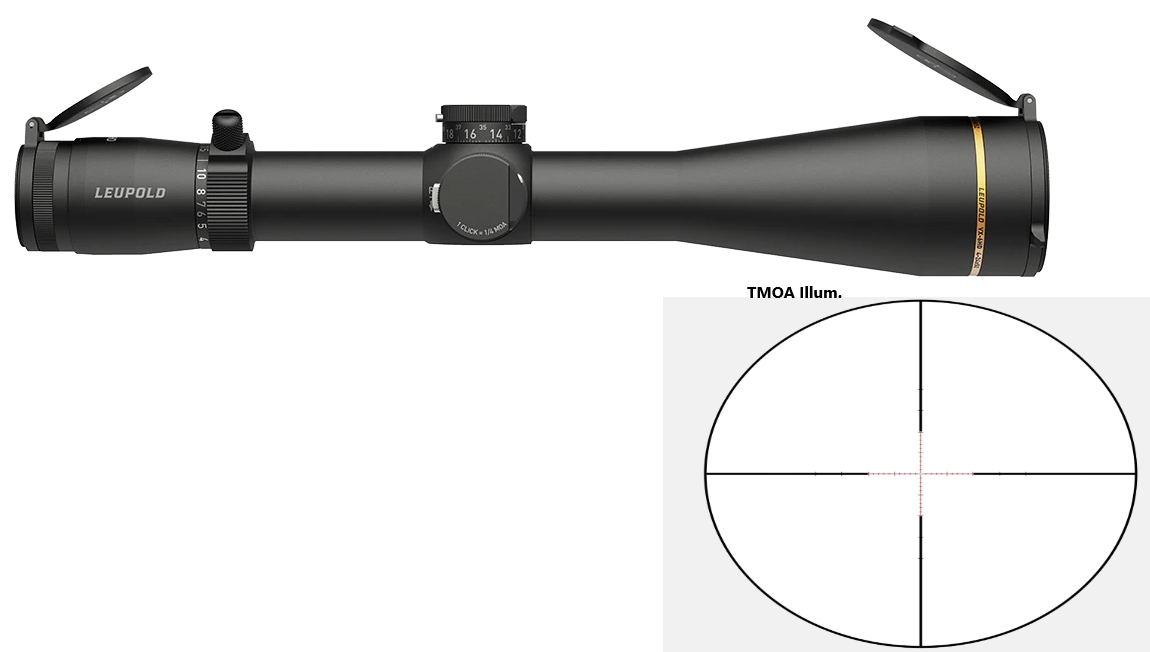

| Reticle | Illum. TMOA |
| Rezero Type | SpeedSet |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Precision Side Focus | Yes |
| Switch Type | Push Button |
| Windage Adjustment Type | Zero-Lock WIndage |
| Weight (oz) | 26.2 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 100 |
| Elevation Adjustment Range (MIL) | 29 |
| Elevation Adjustment Range (cm @ 100m) | 291 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 38MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 100 |
| Windage Adjustment Range (MIL) | 29 |
| Windage Adjustment Range (cm @ 100m) | 291 |
| Windage Adjustment Per Revolution | 20 MOA |
| Magnification Max | 24 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 52 |
| Linear FOV Low Mag (ft@100yds) | 28.1 |
| Linear FOV High Mag (ft@100yds) | 4.8 |
| Angular FOV Low Mag (Degrees) | 5.4 |
| Angular FOV High Mag (Degrees) | .9 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
