Born from the demands of the world’s most elite operators, the AMG® 1-10x24 was conceived to meet a standard that didn’t exist, until now. Compact enough to run on carbines fully equipped with thermal attachments, lasers, red dots, and backup irons. Tough enough to survive what crushed everything else. Patented internals and structural innovations, every ounce engineered with purpose for those who’ve outgrown everything else.
| Magnification | 1-10x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | First Focal Plane |

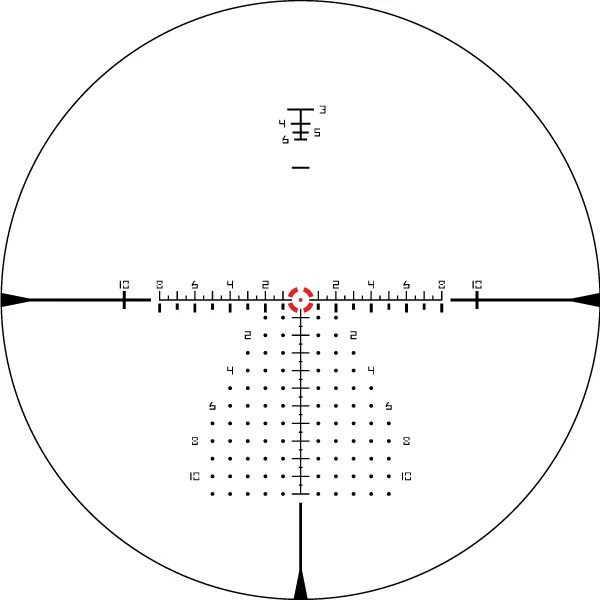

| Reticle | EBR-9 (MRAD) |
| Eye Relief | 3.3" |
| Field of View | 116.0' - 12.0' @ 100 yds. |
| Turret Style | Dual Zero - Capped |
| Tube Size | 34mm |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 30 MRAD |
| Max Windage Adjustment | 30 MRAD |
| Parallax Setting | 250 yds |
| Length | 8.4" |
| Weight | 18.8 oz. |
